Dual Optical-Electrical Paths, Cleaner Streaming
Hi-Fi-Grade Optimized Network-Switch Architecture, Delivers Clean and Stable Network Signals for Your Streamers, NAS and DACs to Recover Music’s Authentic Texture

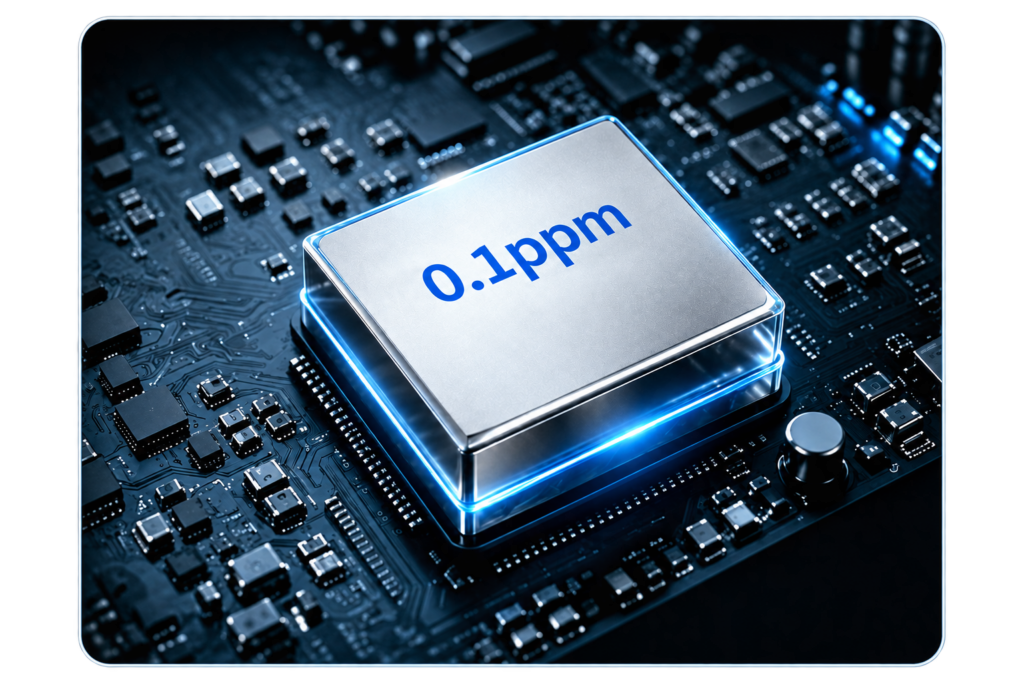

Built-in 0.1ppm TCXO oscillator. The system is powered via optimized trace lengths and linear LDO regulators, greatly improving the unit’s current-noise performance.
Front-stage uses genuine ADI LT3042 combined with PNP devices to deliver high-current, low-ripple power supply. Three-channel SGM2208 devices on the rear-stage provide next-level low-noise power delivery.
Front-stage uses genuine ADI LT3042 combined with PNP devices to deliver high-current, low-ripple power supply. Three-channel SGM2208 devices on the rear-stage provide next-level low-noise power delivery.

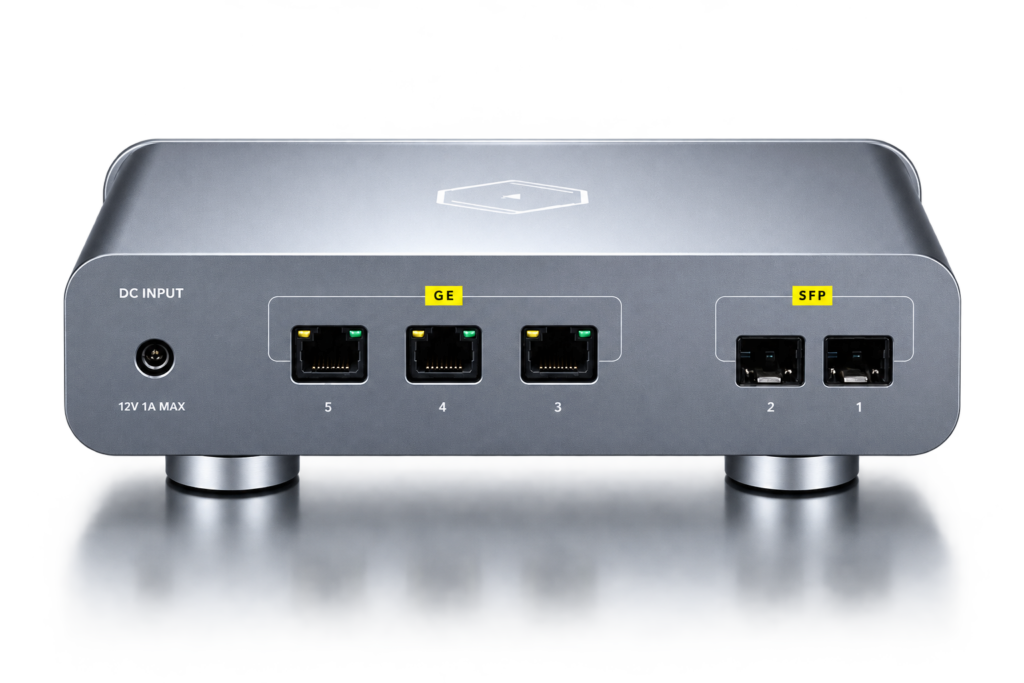

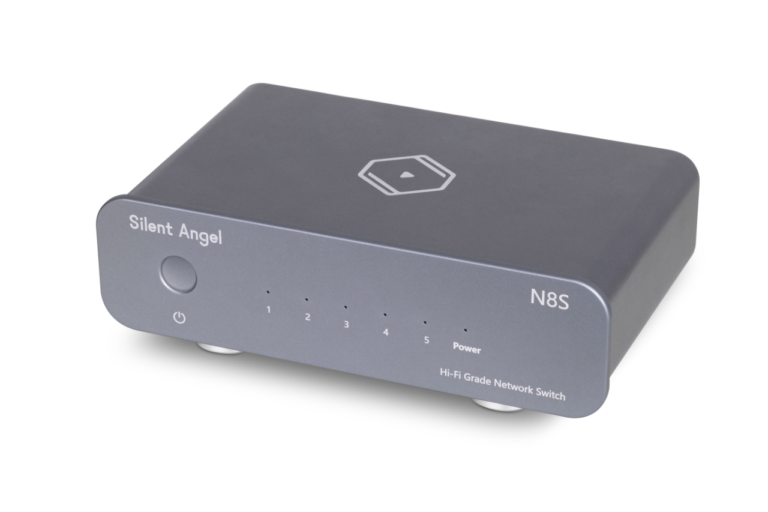

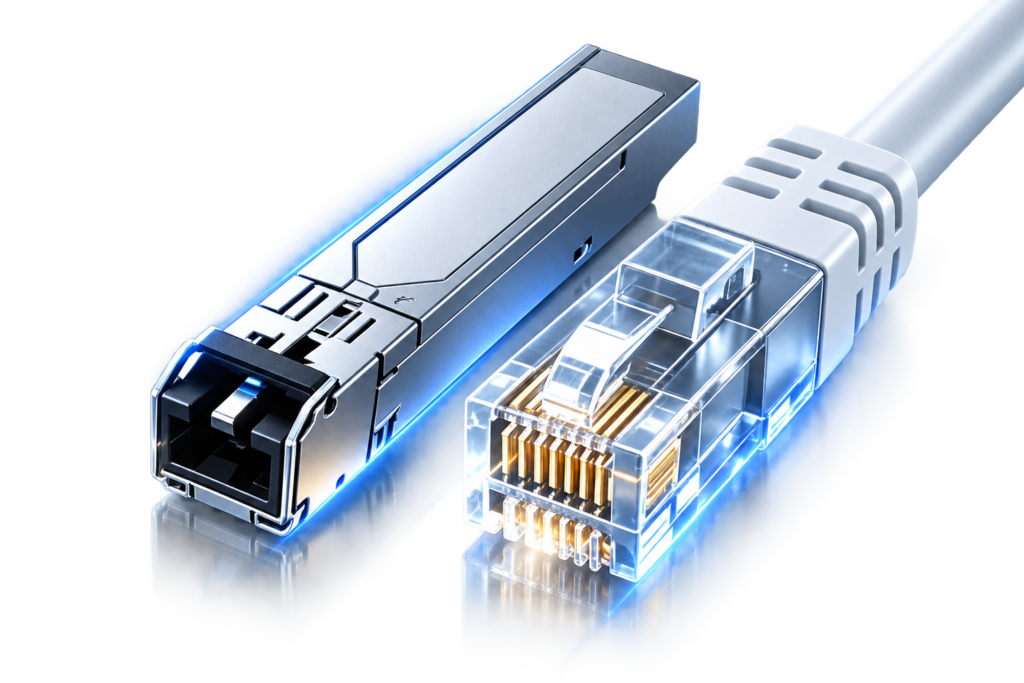

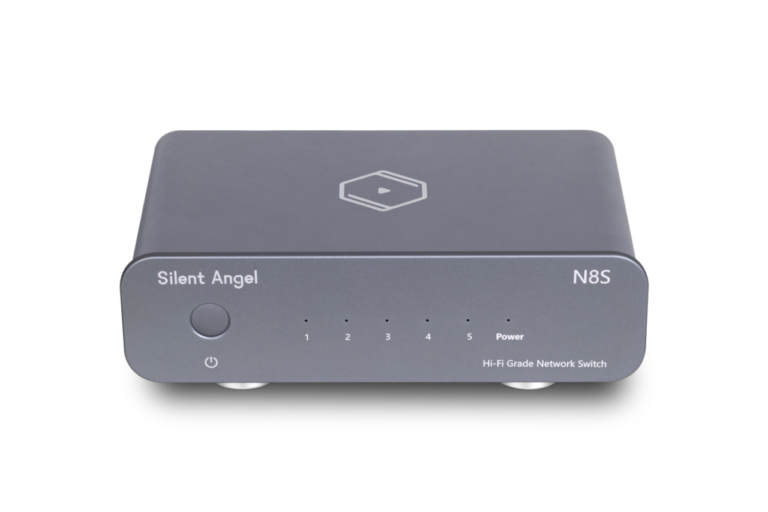

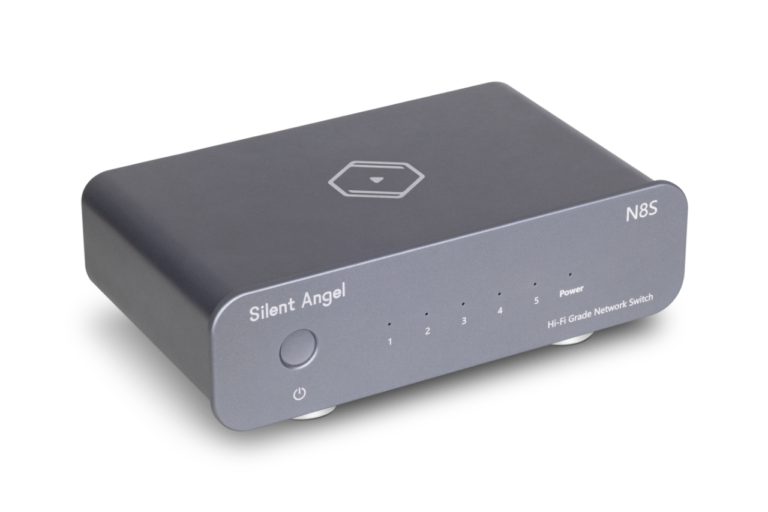

Globally best-selling N8, now fully evolved into the N8S. It inherits the classic robust and reliable hardcore performance while reimagining its industrial-aesthetic appearance. Newly equipped with combined SFP + RJ45 composite interfaces for expanded networking solutions and compatibility with diverse Hi-Fi-audio application scenarios.

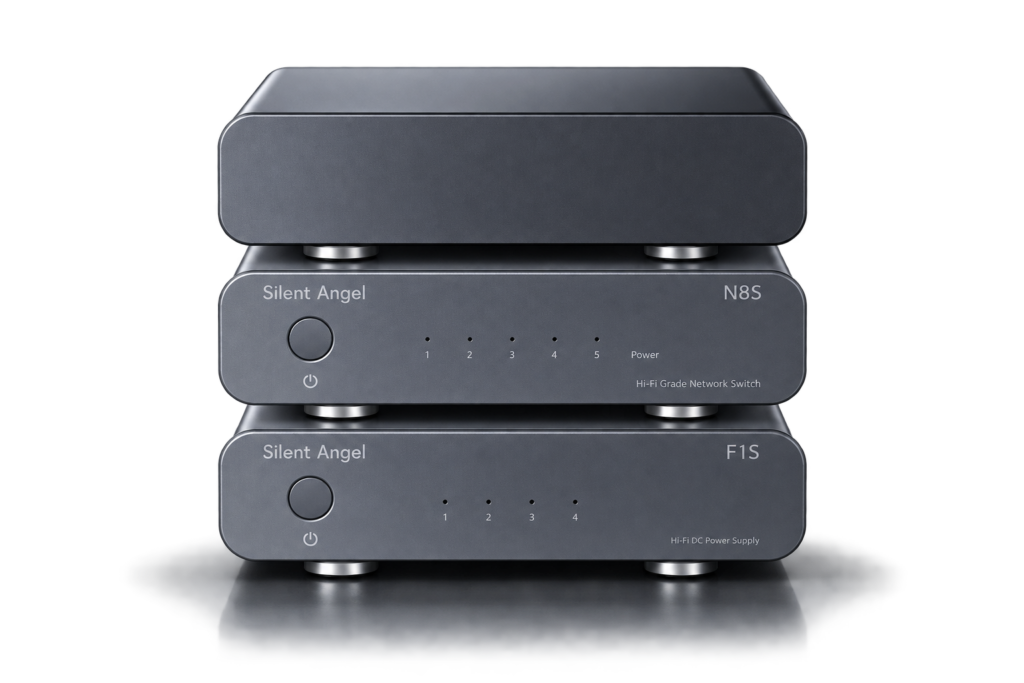

Eliminate Path-Wide Noise to Restore Live-Performance Fidelity
Cleaner Signal, Deeper Black Background
Higher-Speed & Greater Stability

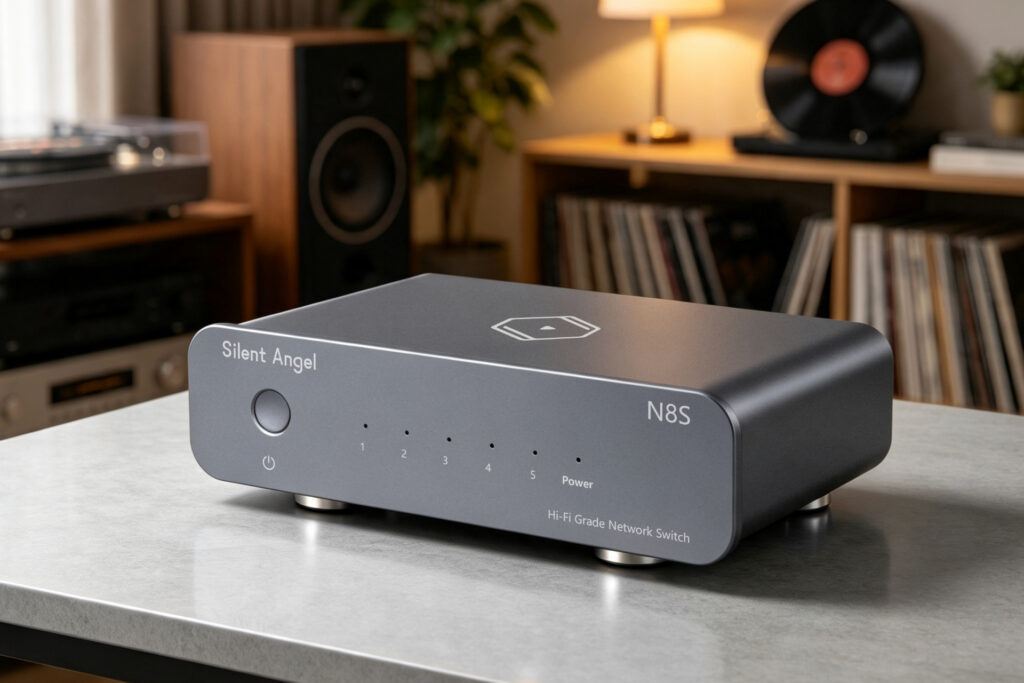

| Housing Material | Cage aluminum alloy chassis structure |
| Product Dimensions | 205mm x 125mm x 58mm |
| Product Weight | 1.2kg (Gross Weight) |

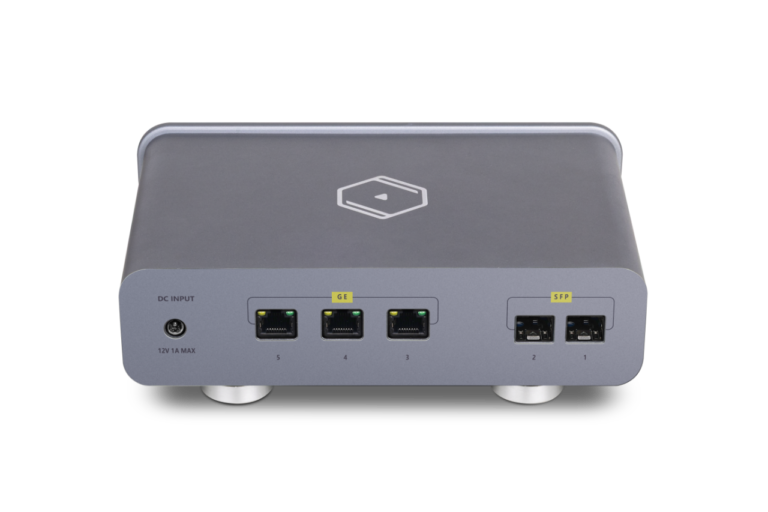

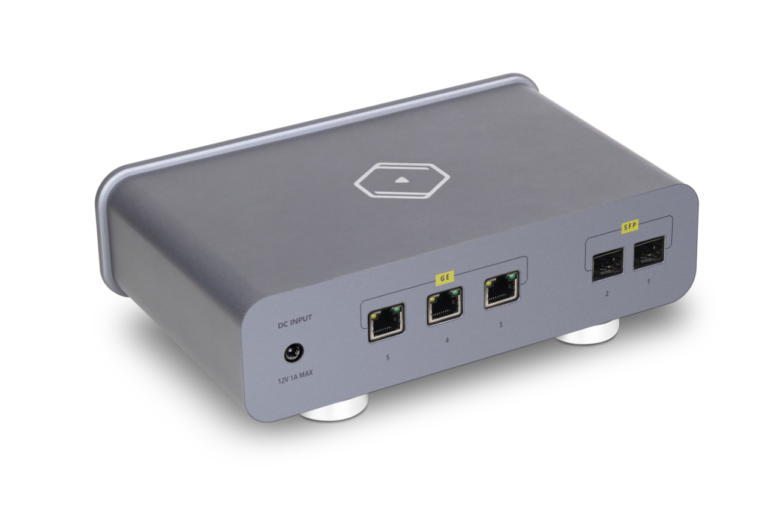

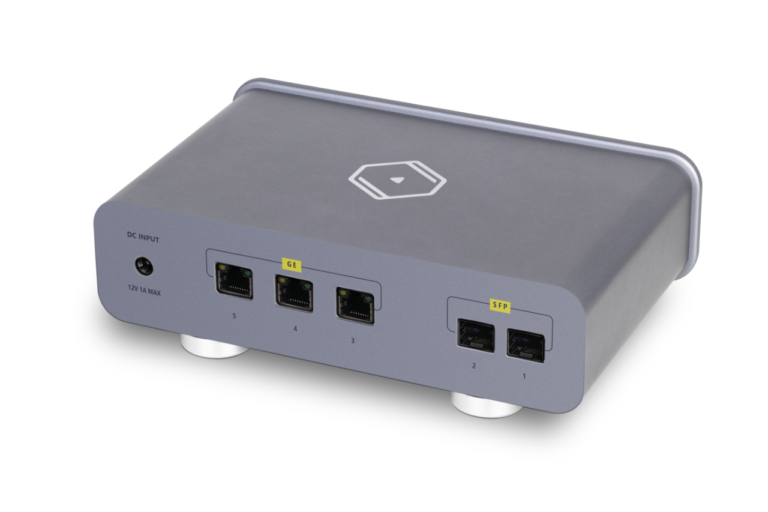

| Network Interfaces | 3 × 10/100/1000 Mbps auto-adaptive Ethernet ports + 2 × SFP ports |
| Status Indicators | 1 × Power indicator; 3 × Electrical-port status LEDs; 2 × Optical-port status LEDs |
| Power Input | 12V, 1A (15%), with over-voltage and under-voltage protection |
| Maximum Power Consumption | 12W |
| Power Supply Filter | Front-stage ADI original LT3042 + PNP large-current ripple filtering, with three-stage SCM2208 low-noise power supply afterward |
| Network Switch Chip | Realtek RTL8367 |
| Main Clock | 25MHz square-wave, 3.3Vpp, 0.1PPM @25°C, powered by an independent low-noise LDO |
| Clock Phase Noise | 100dBc@10HZ |
| Power Supply Noise | <50uV (BW=90K, AP525) |
| PCB Impedance Control | Network port impedance 100S +5% |
| Network Transformer Performance | >40dB @30MHz; >30dB @100MHz |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | Operating: 10% to 90% RH, non-condensing; Storage: 5% to 95% RH, non-condensing |
| Safety Compliance Certification | CE, FCC, KC, PSE |
